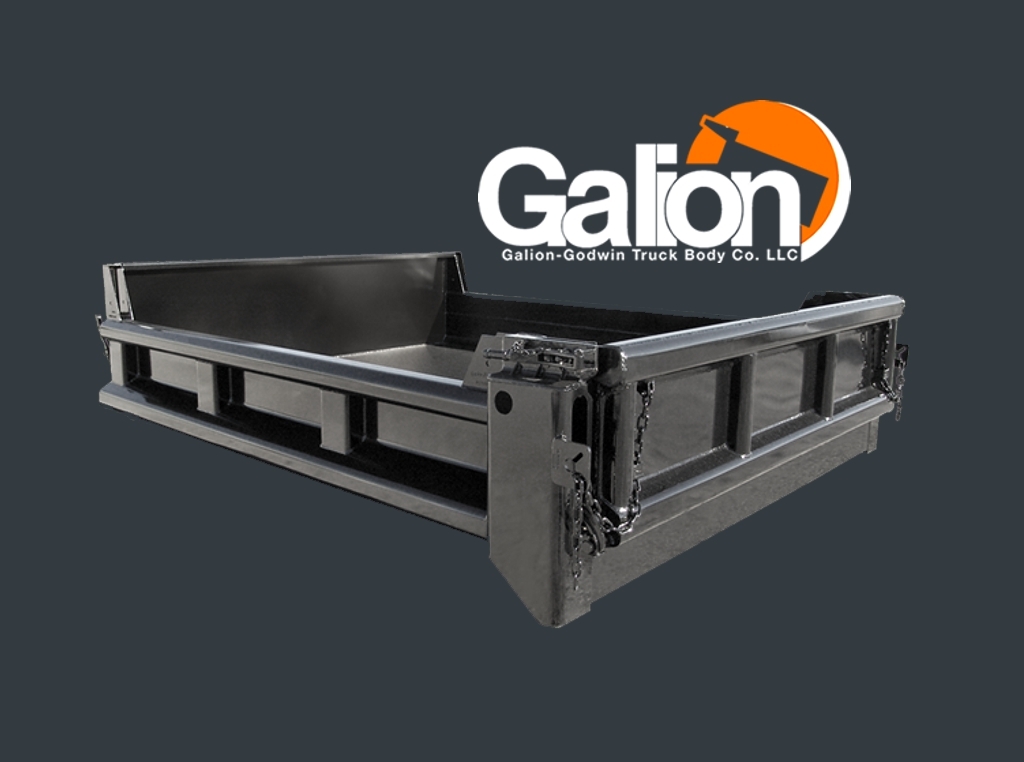

New GALION 3460094 Dump Body For Sale

Description

The Galion 100U dump body is designed for superior service on 9900 -19500 GVWR cab/chassis. The 100U features all 10 gauge high tensile steel floors, tailgate, head sheets and sides. Front corner posts, two intermediate side braces, full depth rear corner posts and boxed "material shedding" top rails are also standard.

General Dimensions:
Available in inside lengths from 8' through 11'-6", 84" inside width with 13" sides and 19" gate or 18" sides and 24" gate.

Sides:
10 Gauge high tensile steel with material shedding boxed top rails, full depth 10" rear corner post, front side brace, two intermediate vertical side braces and 6" front and rear board extension pockets.

Floor:
10 gauge high tensile steel, with 2" radius floor to side radius.

Front Bulkhead:
10 gauge high tensile steel construction with two bend top flange.

Tailgate:
Heavy duty cast quick release top hardware and cast overshot lower hardware with manual release handle.
